Brand:haomei
Mini Order:500Square Met
deliver goods:Within 3 days
Send inquiry

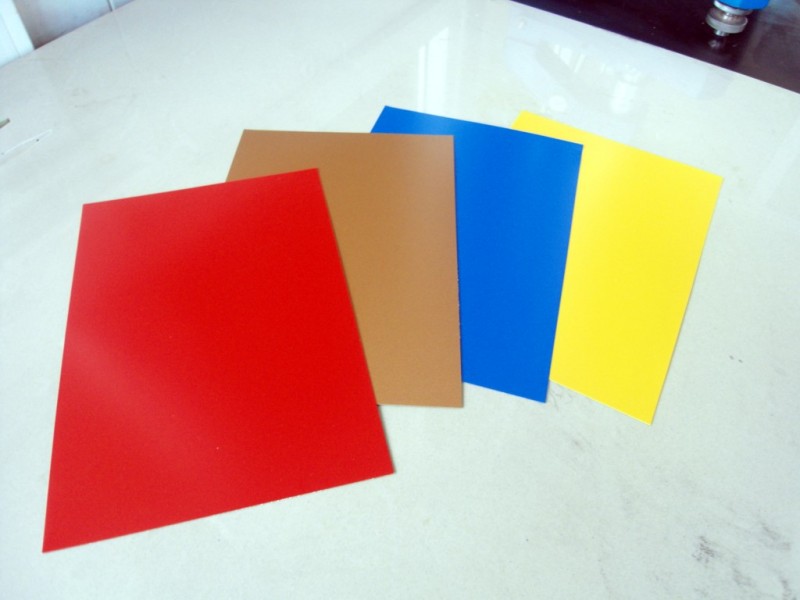

Aluminium Composite Panel (ACP) or Aluminium Composite Material (ACM) is a widely-used term describing flat panels that consist of a non-aluminium core bonded between two aluminium sheets.Aluminium sheets can be coated with PVDF or Polyester paint.ACPs are frequently used for external cladding of buildings (building facades), for insulation and for signage.
1/Specification
| Panel Thickness | 2mm,3mm,4mm,5mm,6mm |
| Panel Width | 1000mm,1250mm,1500mm,2000mm(maximum) |
| Panel Length | 1000mm to 6000mm |
| Surface coating | One side coil coated, backside lacquer finish |
| Other surface | Both sides coil coated lacquer; One side anodized, backside lacquer finish |
Standard size: 1220mm x 2440mm x 3mm for interior
1220mm x 2440mm x 4mm for exterior
Other specifications upon request.
Dimensional tolerances:
| Panel Width | ±2mm |
| Panel Length | ±3mm |
| Panel Thickness | ±0.2mm |
| Panel Diagonal | ≤5mm |
| Aluminum sheet thickness | ±0.2mm |
Standard Color: 30 kinds. Special color available upon request.
